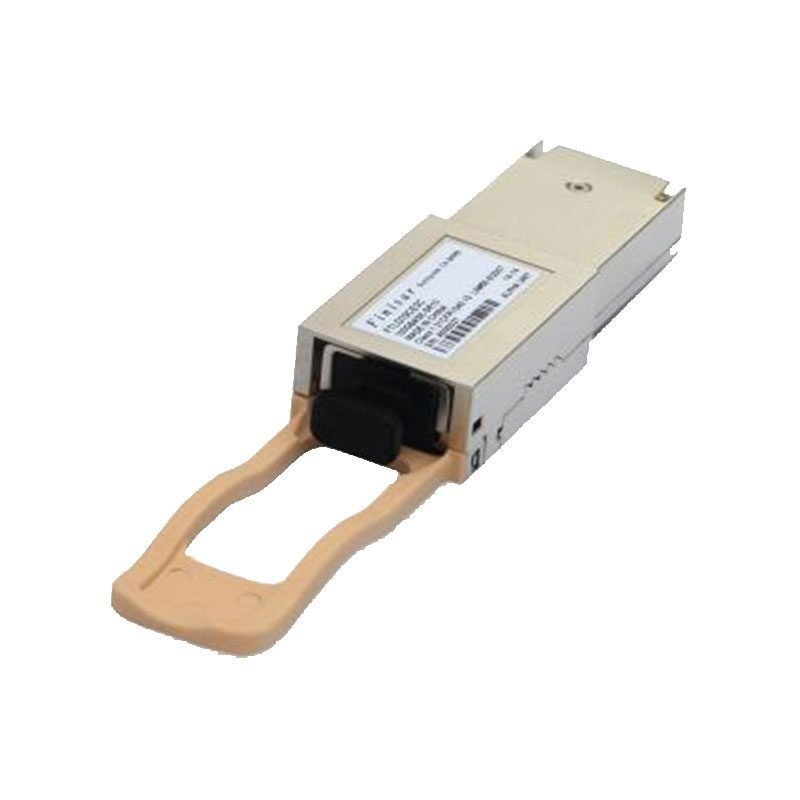

FTLD12CL3C Technical Specifications
Transceiver Module
This advanced 12-channel full-duplex transceiver module supports a multirate capability ranging from 1.06Gb/s to 12.5Gb/s per channel, achieving an impressive aggregate data rate of 150 Gb/s for 100 Gigabit Ethernet applications. It is designed for maximum link lengths of 100m when used with OM3 Multimode Fiber (MMF). The module features an unretimed CPPI electrical interface and operates with a 3.3V power supply, ensuring low power consumption of less than 3.5W. Utilizing reliable VCSEL array technology, it incorporates built-in digital diagnostic functions to enhance performance monitoring. The transceiver operates within a commercial temperature range of 0°C to 70°C and is equipped with a single MPO connector receptacle for easy installation.
