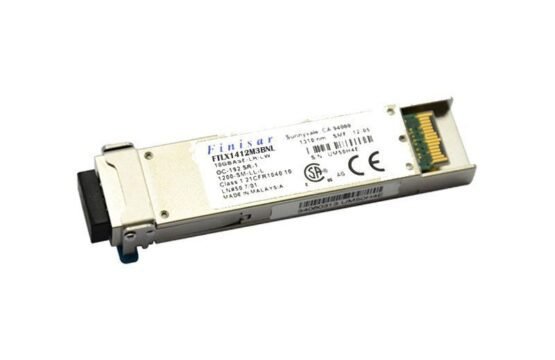

“Image for reference only. Specs are accurate.”
FTLX1412M3BTL Finisar XFP 10GBase-LR Transceiver
FTLX1412M3BTL Overview
This Finisar FTLX1412M3BTL compatible XFP transceiver delivers 10GBase-LR performance over single-mode fiber (SMF) for distances up to 10km, utilizing a wavelength of 1310nm and an LC connector. It is assured to be fully compatible with the corresponding Finisar transceiver model.
Description
FTLX1412M3BTL Technical Specifications
Finisar XFP TAA Compliant Transceiver XF
The FTLX1412M3BTL is a hot-pluggable XFP transceiver module designed for high-speed data transmission. It supports data rates ranging from 9.95Gb/s to 11.3Gb/s, making it suitable for 10 Gigabit Ethernet applications. This transceiver is compatible with both 10GBASE-LR/LW Ethernet and 1200-SM-LL-L Fibre Channel standards. Operating within an industrial temperature range of -40°C to 85°C, it features an uncooled 1310nm DFB laser and can achieve a maximum link length of 10km. The module requires a single 3.3V power supply and does not need a reference clock for operation. It is equipped with a standard bail release mechanism and utilizes an LC Duplex connector for connectivity. Additionally, built-in digital diagnostic functions ensure optimal performance monitoring.
