“Image for reference only. Specs are accurate.”

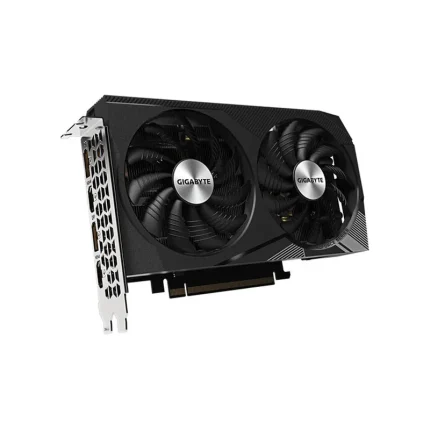

GV-N3060WF2OC-12GD G20 Gigabyte GeForce RTX 3060 WINDFORCE OC Graphics Card
GV-N3060WF2OC-12GD G20 Overview
The Gigabyte GeForce RTX 3060 WINDFORCE OC Graphics Card is built to deliver excellent gaming, streaming, and content creation performance with the power of the NVIDIA Ampere architecture. Equipped with 3584 CUDA cores and 12GB of GDDR6 memory, it provides smooth gameplay at 1080p and 1440p resolutions while supporting advanced features such as real-time ray tracing and NVIDIA DLSS. The GV-N3060WF2OC-12GD G20 comes factory overclocked with a 1792 MHz boost clock, offering enhanced performance right out of the box.
Description
| Specification | Details |
|---|---|
| Brand | Gigabyte |
| Model | GV-N3060WF2OC-12GD G20 |
| GPU | NVIDIA GeForce RTX 3060 |
| Architecture | NVIDIA Ampere |
| CUDA Cores | 3584 |
| Core Clock | 1792 MHz (OC) |
| Reference Clock | 1777 MHz |
| Memory Capacity | 12GB |
| Memory Type | GDDR6 |
| Memory Speed | 15 Gbps |
| Memory Interface | 192-bit |
| Memory Bandwidth | 360 GB/s |
| Bus Interface | PCI Express 4.0 x16 |
| Cooling | WINDFORCE 2X Dual-Fan |
| Maximum Resolution | 7680 × 4320 (8K) |
| Multi-Display Support | Up to 4 Displays |
| Video Outputs | 2 × DisplayPort 1.4a, 2 × HDMI 2.1 |
| Recommended PSU | 550W |
| Power Connector | 1 × 8-Pin PCIe |
| Card Dimensions | 198 × 121 × 39 mm |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
Frequently Asked Questions (FAQs)
1. How much VRAM does the Gigabyte GeForce RTX 3060 WINDFORCE OC have?
The graphics card features 12GB of GDDR6 memory with a 192-bit memory interface, making it suitable for gaming, content creation, and professional workloads.
2. Does the GV-N3060WF2OC-12GD G20 support ray tracing?
Yes. It supports real-time ray tracing through NVIDIA’s 2nd Generation RT Cores, delivering more realistic lighting, shadows, and reflections in supported games.
3. What cooling solution does this graphics card use?
It uses Gigabyte’s WINDFORCE 2X cooling system with alternate spinning dual fans and screen cooling technology for efficient thermal performance.
4. What power supply is recommended?
Gigabyte recommends a 550W power supply, and the card requires a single 8-pin PCIe power connector.
5. How many monitors can be connected?
The graphics card supports up to four displays through two DisplayPort 1.4a outputs and two HDMI 2.1 ports.
6. Is this graphics card suitable for 1440p gaming?
Yes. The RTX 3060 WINDFORCE OC is designed to deliver excellent 1080p performance and smooth 1440p gaming in most modern titles while supporting NVIDIA DLSS for higher frame rates.
Compatibility and Selection Guidance
Confirm the PCIe slot, graphics memory requirement, power-supply capacity, auxiliary power connectors, chassis clearance, cooling, operating system, and driver support. Match the manufacturer part number GV-N3060WF2OC-12GD with the existing component or the official documentation for the target system. It is intended for graphics-card replacement or system upgrades where its exact model, memory configuration, power requirements, and platform support match the intended workstation or computer.
Business Procurement and Delivery
Prime Soft Trading LLC supplies part-number-specific IT hardware for replacement, upgrade, and business procurement requirements. Contact our team to confirm stock status, product condition, lead time, warranty terms, bulk quantities, UAE delivery, and international shipping before placing an order.
