“Image for reference only. Specs are accurate.”

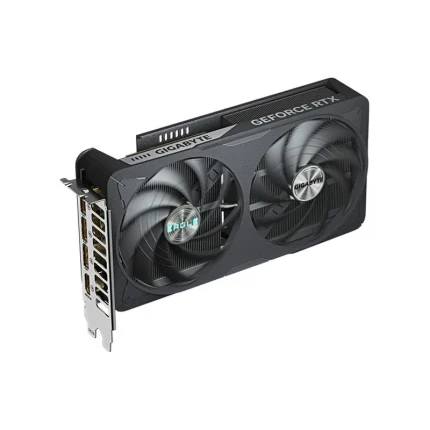

GV-N506TEAGLE OC-16GD Gigabyte GeForce RTX 5060 Ti EAGLE OC 16GB Graphics Card
GV-N506TEAGLE OC-16GD Overview
Description
| Specification | Details |
|---|---|
| Model | GV-N506TEAGLE OC-16GD |
| Graphics Processor | NVIDIA GeForce RTX 5060 Ti |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4,608 |
| Core Clock | 2617 MHz (Factory Overclocked) |
| Memory Capacity | 16GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Interface | PCI Express 5.0 x16 |
| Cooling System | WINDFORCE Dual-Fan Cooling |
| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Maximum Resolution | 7680 × 4320 |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.6 |
| Recommended PSU | 650W |
| Power Connector | 1 × 8-pin PCIe |
| Card Dimensions | 215 × 122 × 40 mm |
| Form Factor | Dual-Slot |
Frequently Asked Questions
1. Is this GV-N506TEAGLE OC-16GD graphics card suitable for 1440p gaming?
Yes. The Gigabyte GeForce RTX 5060 Ti EAGLE OC 16GB is designed to deliver excellent 1080p and 1440p gaming performance with support for ray tracing and NVIDIA DLSS 4.
2. How much memory does this graphics card have?
It features 16GB of next-generation GDDR7 memory for demanding games, creative applications, and AI workloads.
3. What power supply is recommended?
Gigabyte recommends using a 650W power supply with one available 8-pin PCIe power connector.
4. Does it support multiple monitors?
Yes. It supports up to four displays through three DisplayPort 2.1b outputs and one HDMI 2.1b port.
5. Is this card compatible with PCIe 4.0 motherboards?
Yes. Although designed for PCIe 5.0, it is backward compatible with PCIe 4.0 and PCIe 3.0 motherboards.
6. What cooling solution does this model use?
It uses Gigabyte’s WINDFORCE cooling system featuring dual Hawk fans, composite copper heat pipes, server-grade thermal gel, and a durable metal backplate for efficient cooling.
