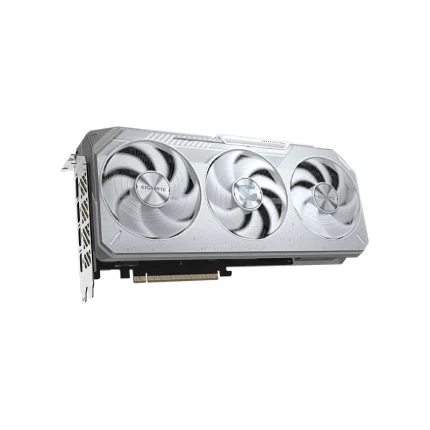

“Image for reference only. Specs are accurate.”
GV-N5070EAGLEOC ICE-12GD Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF Graphics Card
GV-N5070EAGLEOC ICE-12GD Overview
Description
| Specification | Details |
|---|---|
| Model | GV-N5070EAGLEOC ICE-12GD |
| Graphics Processor | NVIDIA GeForce RTX 5070 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 6,144 |
| Core Clock | 2587 MHz (Factory OC) |
| Memory Capacity | 12GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 192-bit |
| Interface | PCI Express 5.0 x16 |
| Cooling System | WINDFORCE Triple Fan Cooling |
| Fan Design | Hawk Fans |
| Thermal Solution | Server-grade Thermal Conductive Gel |
| Card Dimensions | 290 × 120 × 50 mm |
| Form Factor | ATX, NVIDIA SFF-Ready |
| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Maximum Digital Resolution | 7680 × 4320 |
| Maximum Displays | 4 |
| DirectX Support | DirectX 12 API |
| OpenGL Support | OpenGL 4.6 |
| Power Connector | 1 × 16-Pin (12V-2×6) |
| Recommended PSU | 750W |
| RGB Lighting | Yes |
| Backplate | Reinforced Metal Structure |
| Included Accessories | Quick Guide, 12V-2×6 to Dual 8-Pin Adapter |
Frequently Asked Questions (FAQs)
1. What GPU is used in the GV-N5070EAGLEOC ICE-12GD?
This graphics card is powered by the NVIDIA GeForce RTX 5070 GPU based on the latest Blackwell architecture.
2. How much memory does this graphics card have?
It features 12GB of high-speed GDDR7 memory with a 192-bit memory interface for smooth gaming and content creation.
3. Is this graphics card suitable for Small Form Factor PCs?
Yes. It is NVIDIA SFF-Ready, making it ideal for compact gaming and workstation systems while maintaining excellent cooling performance.
4. What power supply is recommended?
Gigabyte recommends using a quality 750W power supply along with the required 16-pin power connector.
5. How many monitors can it support?
The card supports up to four displays using three DisplayPort 2.1b outputs and one HDMI 2.1b output.
6. Does it support ray tracing and DLSS?
Yes. The graphics card supports hardware-accelerated ray tracing, DLSS 4, AI-powered rendering, and advanced gaming technologies available on the NVIDIA Blackwell platform.
