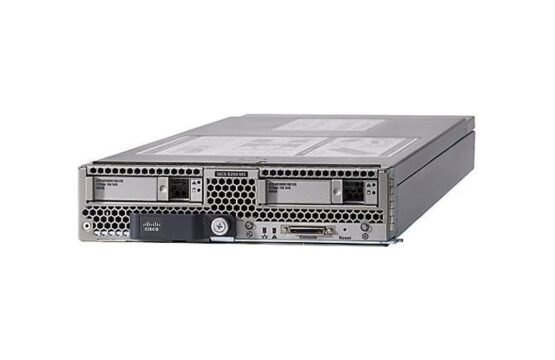

“Image for reference only. Specs are accurate.”
HX-B200-M5-U Cisco UCS B200 M5 Blade Server with No CPU
HX-B200-M5-U Overview
The Cisco UCS B200 M5 Blade Server offers exceptional performance and flexibility for various deployment environments, including data centers, cloud, and remote locations. This enterprise-grade server excels in versatility and density, supporting workloads such as Virtual Desktop Infrastructure (VDI), web services, distributed databases, and enterprise applications like Oracle and SAP HANA. Quickly deploy both physical and virtual workloads with ease using Cisco UCS Manager software and Cisco SingleConnect technology.
8,385.95 AED
Description
HX-B200-M5-U Technical Specifications
Cisco UCS B200 M5 Blade Server – blade – no CPU
Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 2
Total Qty: 2 Bays
Card Reader
Supported Flash Memory Cards: SD Memory Card
Chassis
Form Factor: Blade
Hot-Swap Bays Qty: 2
Manufacturer Form Factor: Blade Server
Server Storage Bays: Hot-swap
Swappable Drive Form Factor: 2.5″
Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 24.4 in
Height: 2 in
Weight: 9.5 lbs
Width: 8 in
Environmental Parameters
Operating Humidity Range: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Bays
Form Factor (metric): 6.4 cm SFF
Type: Hot-swap
Expansion Slots
Type: M.2 Card, SD card
Hard Drive
Type: No HDD
Header
Brand: Cisco
Manufacturer: Cisco Unified Computing
Model: B200 M5 Blade Server
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Location: 1 internal
Type: USB 3.0, KVM
Miscellaneous
Color Category: Gray
Compliant Standards: ACPI 4.0
Included Accessories: 24 x DIMM blanks, CPU Heatsink
Networking
Remote Management Controller: Cisco Integrated Management Controller
Optical Storage
Drive Type: No optical drive
Type: None
OS Provided
Type: No operating system
Processor
Max Supported Qty: 2
Server Scalability: 2-way
Type: No CPU
Upgradability: Upgradable
RAM
Data Integrity Check: Advanced ECC
Empty Slots: 24
Features: Load-Reduced DIMM (LRDIMM), Registered, Through-silicon via DIMMs (TSV DIMMs)
Form Factor: DIMM 288-pin
Installed Size: 0 GB
Max Supported Size: 3072 GB
Slots Qty: 24 DDR4 Slots
Technology: DDR4 SDRAM
