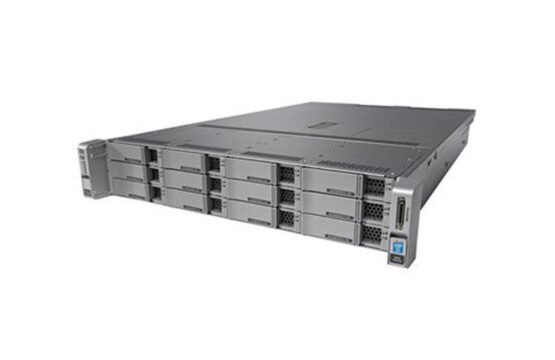

“Image for reference only. Specs are accurate.”
HX-SP-220M5-E1 Cisco UCS Smart Play HX220c Hyperflex System
HX-SP-220M5-E1 Overview
Cisco UCS SmartPlay bundles are tailored for Cisco UCS servers, aimed at reducing your total cost of ownership (TCO). They provide outstanding performance, flexibility, and scalability, which have established Cisco UCS as one of the fastest-growing server lines. Whether initiating or expanding your Cisco UCS setup, these bundles offer a quick and straightforward way to acquire Cisco UCS servers.
23,073.29 AED
Description
HX-SP-220M5-E1 Technical Specifications
Cisco UCS Smart Play HX220c Hyperflex System
Cache Memory
Installed Size: 13.75 MB
Per Processor Size: 13.75 MB
Type: L3 cache
Card Reader
Supported Flash Memory Cards: SD Memory Card
Chassis
Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″ (6.4 cm)
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 29.8 in
Height: 1.7 in
Width: 16.9 in
Environmental Parameters
Operating Humidity Range: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Bays
Type: Hot-swap, Form Factor (metric): 6.4 cm SFF
Expansion Slots
Size: Half-length, half-height, Type: PCIe 3.0 x24
Header
Brand: Cisco
Model: Smart Play HX220c Hyperflex System EDGE 1
Packaged Quantity: 1
Interface Provided
Connector Type: DB-15 (VGA), RJ-45 (Serial), USB 3.0, LAN (10 Gigabit Ethernet)
Miscellaneous
Color Category: Silver
Included Accessories: 32 GB microSD card, 5 x SFF drive blanking panels, Bezel, Cisco Ball Bearing Rail Kit, CPU Heatsink, Mini storage carrier, Power supply blanking panel
Networking
Data Link Protocol: 10 Gigabit Ethernet
Ethernet Controller(s): Intel X550
Remote Management Controller: Intel Baseboard Management Controller (BMC)
