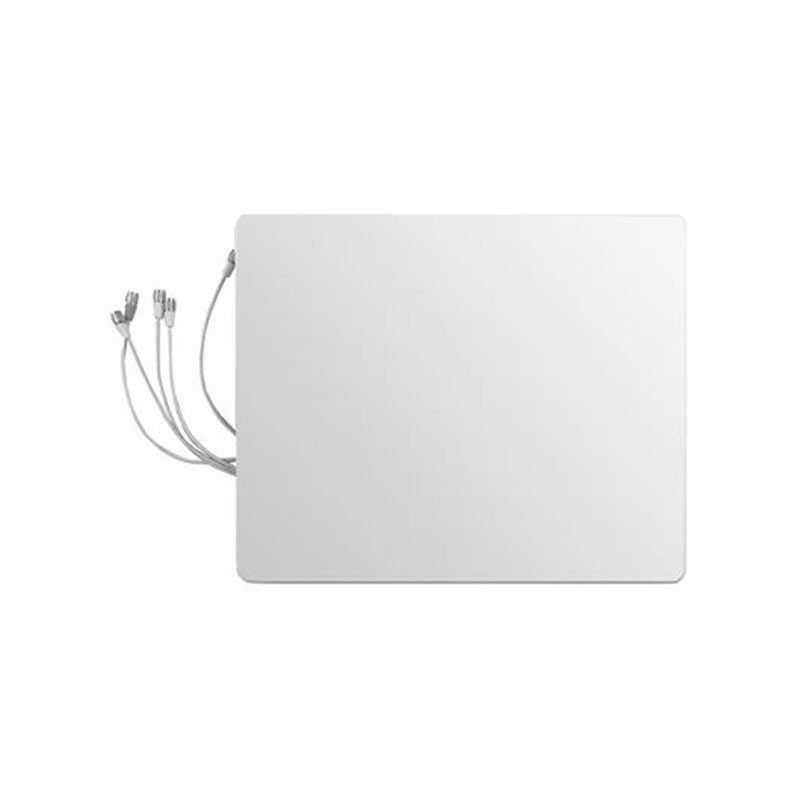

MA-ANT-3-F6 Cisco Meraki Narrow Patch Antenna for High Density Applications
MA-ANT-3-F6 Overview
This Cisco Meraki Narrow Patch Antenna features a gain of 11.2 dBi for 2.4 GHz and 10.8 dBi for 5 GHz. It is designed for directional use, allowing for wall or pole mounting indoors. Ideal for high-ceiling installations in areas with dense user traffic, such as lecture halls and event venues, it supports advanced smart antenna capabilities.
639.00 AED
Description
MA-ANT-3-F6 Technical Specifications
Cisco Meraki Narrow Patch Antenna
General
- Accessory Category: Antennas
- Package Includes: 1 m antenna cable
Compatibility
- Compatible With: Cisco Meraki MR53
Antenna Features
- Mounting Options: Indoor, Wall-mountable, Pole mount
- Directivity: Directional
- Frequency Range: 2.4 – 2.5 GHz, 5.15 – 5.875 GHz
- Gain: 10.8 dBi (5 GHz), 11.2 dBi (2.4 GHz)
- Beamwidth: Horizontal 30°, Vertical 30°
Environmental Conditions
- Operating Humidity: 5 – 93%
- Max Operating Temp: 104 °F
- Min Operating Temp: 32 °F
Product Information
- Brand: Cisco Meraki
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: Narrow Patch
- Packaged Quantity: 1
- Product Line: Cisco Meraki
Interface Details
- Connector Quantity: 6
- Connector Type: RP-TNC Connector
Miscellaneous
- Color: White
- Mounting Kit: Included
- Material: PC/ABS
- Product Type: Antenna
