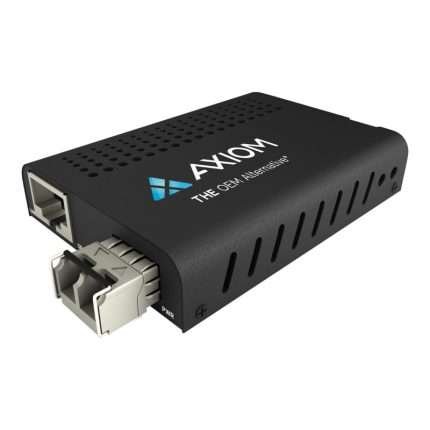

MC03-S3L20-AX Axiom Mini Fiber Media Converter
MC03-S3L20-AX Overview
The MC03-S3L20-AX Axiom Mini Fiber Media Converter is a compact unmanaged Gigabit Ethernet solution designed to convert 10/100/1000Base-TX copper Ethernet to 1000BASE-LX single-mode fiber connectivity. It features an RJ-45 copper port and LC Duplex fiber interface, supporting transmission distances up to 20km over single-mode fiber at a 1310nm wavelength. The mini converter supports full- or half-duplex operation, auto-negotiation, Auto-MDI/MDIX, automatic link restoration, IEEE 802.3x flow control, and Link Fault Pass-through (LFP). Its metal enclosure and compact design make it suitable for space-constrained network installations, fiber network extensions, and connecting legacy copper equipment to Gigabit fiber infrastructure.
95.54 AED
Description
| Specification | Details |
|---|---|
| Brand | Axiom |
| Part Number | MC03-S3L20-AX |
| Product Type | Mini Fiber Media Converter |
| Converter Type | Gigabit Ethernet Unmanaged Media Converter |
| Copper Interface | 10/100/1000Base-TX RJ-45 |
| Fiber Interface | 1000BASE-LX LC Duplex |
| Fiber Type | Single-Mode Fiber (SMF) |
| Maximum Fiber Distance | 20km |
| Wavelength | 1310nm |
| Data Rate | Up to 1Gbps |
| Forwarding Mode | Store-and-Forward |
| Forwarding Frame | Up to 9KB |
| Duplex Mode | Full Duplex / Half Duplex |
| Auto-Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Link Fault Pass-through | Supported |
| Flow Control | IEEE 802.3x |
| Power Requirement | DC 5–12V, 0.5/0.25A |
| Power Consumption | Less than 3W at full load |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Relative Humidity | 5%–95%, non-condensing |
| MTBF | 50,000 hours |
| Enclosure | Metal |
| Certifications | FCC Class A, CE Class A |
| Warranty | 3-Year Limited Warranty |
Frequently Asked Questions
1. What is the MC03-S3L20-AX used for?
The MC03-S3L20-AX is used to convert 10/100/1000Base-TX copper Ethernet connectivity to 1000BASE-LX single-mode fiber, allowing Gigabit Ethernet networks to be extended over fiber.
2. What is the maximum transmission distance of this Axiom media converter?
It supports fiber transmission distances of up to 20km using single-mode fiber with a 1310nm wavelength.
3. What connectors does the MC03-S3L20-AX provide?
It provides one RJ-45 UTP copper connector and one LC Duplex fiber connector, along with a DC power input.
4. Does this media converter support automatic network configuration?
Yes. It supports auto-negotiation and Auto-MDI/MDIX, while also supporting full- or half-duplex operation for flexible network deployment.
5. Is the Axiom Mini Fiber Media Converter suitable for compact network installations?
Yes. Its mini form factor and metal enclosure make it suitable for space-constrained installations, network extensions, and connecting copper-based equipment to long-distance Gigabit fiber networks.
