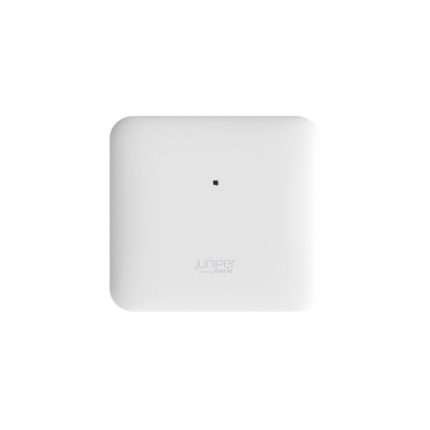

MIST-AP34-2S-1Y Mist Tri Band Wi-Fi 6E Indoor Access Point – 4.08 Gbit/s
MIST-AP34-2S-1Y Overview
The MIST-AP34-2S-1Y Mist Tri Band Wi-Fi 6E Indoor Access Point is a high-performance enterprise wireless access point designed to deliver reliable connectivity across the 2.4GHz, 5GHz, and 6GHz bands. Built on 802.11ax Wi-Fi 6E technology, the AP34 uses 2×2:2 MIMO radios with maximum data rates of 575Mbps at 2.4GHz, 1.2Gbps at 5GHz, and 2.4Gbps at 6GHz, providing up to 4.2Gbps combined supported throughput. A dedicated fourth radio performs spectrum monitoring, wireless security, and radio resource management, while built-in Bluetooth 5.1 supports asset visibility applications. The AP34 also features Mist AI cloud management, internal omnidirectional antennas, beamforming, MU-MIMO, OFDMA, and 802.3at PoE for full functionality, making it suitable for offices, campuses, high-density environments, and enterprise wireless deployments.
Description
| Specification | Details |
|---|---|
| Brand | Mist / Juniper Networks |
| Part Number | MIST-AP34-2S-1Y |
| Model | AP34 |
| Product Type | Indoor Wireless Access Point |
| Wi-Fi Generation | Wi-Fi 6E |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Frequency Bands | 2.4GHz, 5GHz, 6GHz |
| Radio Configuration | Tri-Band, Quad-Radio |
| MIMO | 2×2:2 with Two Spatial Streams |
| 2.4GHz Data Rate | Up to 575Mbps |
| 5GHz Data Rate | Up to 1.2Gbps |
| 6GHz Data Rate | Up to 2.4Gbps |
| Combined Maximum Supported Rate | Up to 4.2Gbps |
| Dedicated Fourth Radio | Tri-Band WIDS/WIPS, Spectrum Analysis, Location Analytics |
| Antennas | Internal Omnidirectional |
| 2.4GHz Antenna Gain | 4dBi Peak |
| 5GHz Antenna Gain | 6dBi Peak |
| 6GHz Antenna Gain | 6dBi Peak |
| Bluetooth | Bluetooth 5.1 with Omnidirectional Antenna |
| Wireless Features | OFDMA, MU-MIMO, 1024-QAM, TWT, BSS Coloring, Beamforming |
| Ethernet | 1 × RJ-45 5GbE / PoE Port |
| Power | 802.3af / 802.3at PoE |
| Full Functionality Power | 802.3at |
| Management | Juniper Mist Cloud Architecture |
| USB | USB 2.0 |
| Dimensions | 230 × 230 × 50mm |
| Weight | 1.89kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90%, Non-Condensing |
| Security | Built-in TPM, WIDS/WIPS and Spectrum Monitoring |
| Deployment | Indoor |
| Cloud Subscription | 2 × 1-Year Cloud Services in MIST-AP34-2S-1Y Bundle |
Frequently Asked Questions
1. What is the maximum wireless speed of the MIST-AP34-2S-1Y?
The AP34 supports up to 575Mbps on 2.4GHz, 1.2Gbps on 5GHz, and 2.4Gbps on 6GHz, with a combined highest supported data rate of up to 4.2Gbps.
2. Does this Mist access point support Wi-Fi 6E?
Yes. It supports Wi-Fi 6E through the 2.4GHz, 5GHz, and 6GHz bands using IEEE 802.11ax technology, providing access to the additional 6GHz spectrum.
3. How many radios does the AP34 have?
It has three client-serving Wi-Fi radios plus a dedicated fourth radio for spectrum analysis, wireless security monitoring, and radio resource management.
4. Does the AP34 support Power over Ethernet?
Yes. It supports 802.3af and 802.3at PoE. Juniper specifies 802.3at PoE for full AP functionality.
5. What is included with the MIST-AP34-2S-1Y bundle?
The bundle includes one AP34 wireless access point, a universal mounting bracket, and two 1-year cloud subscription services, with the specific subscription types selected according to the bundle configuration.
