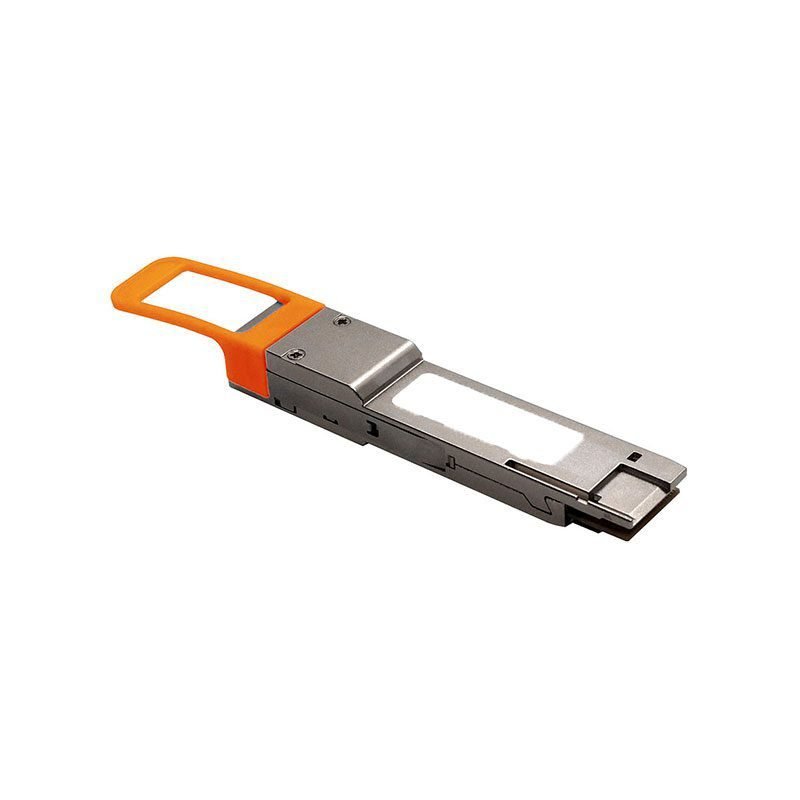

QDD-400G-DR4 Juniper Networks 400G DR4 QSFP-DD Transceiver
QDD-400G-DR4 Overview
The Juniper Networks QDD-400G-DR4 is a 400GBASE-DR4 QSFP-DD PAM4 transceiver module featuring a 1310nm wavelength and a maximum reach of 500 meters. This single-mode optical transceiver supports Digital Optical Monitoring (DOM) for enhanced performance tracking.
43,045.43 AED
Description
QDD-400G-DR4 Technical Specifications
Juniper Networks 400G DR4 QSFP-DD Transceiver
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks
Packaged Quantity: 1
Line Properties:
– Line Coding Format: PAM4
Networking:
– Type: QSFP-DD Transceiver Module
– Form Factor: Plug-in module
– Connectivity Technology: Wired
– Cabling Type: Ethernet 400GBase-DR4, 4x Ethernet 100GBase-DR
– Data Link Protocol: 400 Gigabit Ethernet
– Data Transfer Rate: 400 Gbps
– Optical Wave Length: 1310 nm
– Maximum Transfer Distance: 1640 ft
Features: Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)
Connectors:
– Left Connector Type: MPO-12 single-mode
Interface Provided:
– Interfaces: 1 x Ethernet 400GBase-DR4 – MPO-12 single-mode
Power Device:
– Power Consumption Operational: 12 watts
Miscellaneous:
– Compliant Standards: MSA
Dimensions & Weight:
– Width: 0.7 inch
– Depth: 3.7 inch
– Height: 0.5 inch
Environmental Parameters:
– Min Operating Temperature: 32°F
– Max Operating Temperature: 158°F
Compatibility:
– Compatible With: Juniper Networks QFX Series QFX5220-32CD
