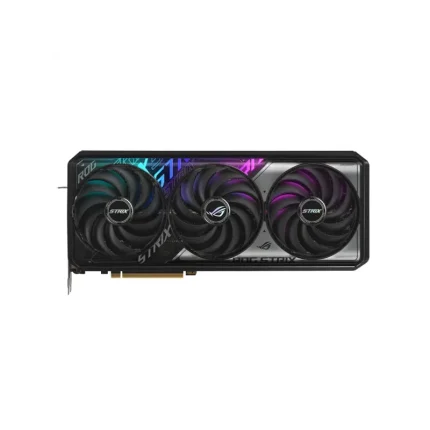

ROG-STRIX-RTX5070TI-O16G-GAMING ASUS GeForce RTX 5070 Ti Strix OC Graphics Card
ROG-STRIX-RTX5070TI-O16G-GAMING Overview
Description
| Specification | Details |
|---|---|
| Model | ROG-STRIX-RTX5070TI-O16G-GAMING |
| Graphics Processor | NVIDIA GeForce RTX 5070 Ti |
| CUDA Cores | 8,960 |
| AI Performance | 1406 TOPS |
| Memory Capacity | 16GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 256-bit |
| Interface | PCI Express 5.0 x16 |
| OC Mode Clock | Up to 2625 MHz |
| Default Boost Clock | 2602 MHz |
| Display Outputs | 3 × DisplayPort 2.1b, 2 × HDMI 2.1b |
| Maximum Displays | 4 |
| Maximum Resolution | 7680 × 4320 |
| HDCP Support | Yes (2.3) |
| OpenGL | 4.6 |
| DirectX | DirectX 12 Ultimate |
| Power Connector | 1 × 16-pin |
| Recommended PSU | 850W |
| Card Dimensions | 332 × 147.3 × 64 mm |
| Slot Size | 3.2 Slot |
| RGB Lighting | ASUS Aura Sync |
Frequently Asked Questions (FAQs)
1. Which GPU powers the ROG-STRIX-RTX5070TI-O16G-GAMING?
This graphics card is powered by the NVIDIA GeForce RTX 5070 Ti GPU with 8,960 CUDA cores and AI performance of up to 1406 TOPS.
2. How much memory does this graphics card have?
It features 16GB of GDDR7 memory with a 256-bit memory interface and 28 Gbps memory speed for high-bandwidth gaming and professional workloads.
3. What display outputs are available?
The card includes three DisplayPort 2.1b connectors and two HDMI 2.1b ports, supporting up to four simultaneous displays and resolutions up to 8K.
4. What cooling system does the ROG Strix RTX 5070 Ti OC use?
It features ASUS’s premium triple-fan cooling solution with a vapor chamber, MaxContact technology, optimized heatsink, and Dual BIOS for Performance and Quiet operating modes.
5. What power supply is recommended?
ASUS recommends using an 850W power supply along with one 16-pin PCIe power connector for stable operation.
6. Is this graphics card suitable for gaming and professional content creation?
Yes. The RTX 5070 Ti OC is ideal for high-refresh-rate 1440p and 4K gaming, AI workloads, 3D rendering, video editing, streaming, CAD, and other GPU-intensive professional applications.
