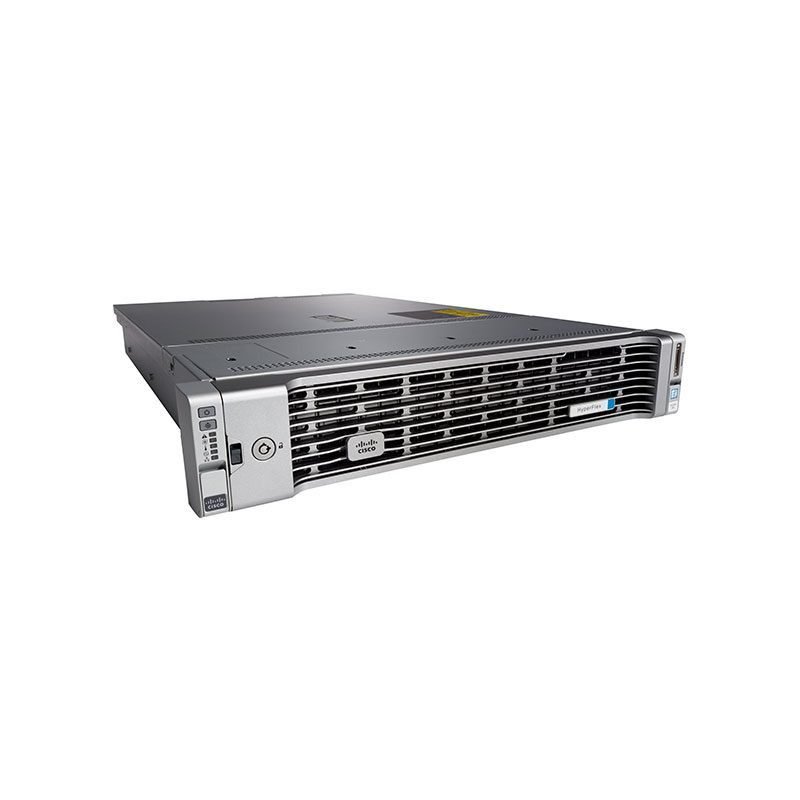

UCS-EZ8-C240M4-VP Cisco UCS Smart Play C240 M4 SFF Server

UCS-EZ8-C240M4-VP Technical Specifications

Cisco UCS Smart Play 8 C240 M4 SFF Value Plus

Bay Provided
Form Factor: 2.5″
Free Qty: 8
Total Qty: 8
Cache Memory
Installed Size: 60 MB
Per Processor Size: 30 MB
Type: L3 cache
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 8 Bays
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″ (6.4 cm)
Server Swappable Drive Interface: SAS
Display
Type: None.
Expansion Bays
Form Factor (metric): 6.4 cm
Type: Hot-swap
Expansion Slots
Size: Half-length, low-profile
Size: Three-quarter-length, full-height
Slot Comments: X16 mode
Type: PCIe 3.0 x24, CPU, DIMM 288-pin
Hard Drive
Type: No HDD
Header
Brand: Cisco
Manufacturer: Cisco Unified Computing
Model: Smart Play 8 C240 M4 SFF Value Plus
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Connector Type: RJ-45
Location: 1 in front, 1 rear, 2 in front, 2 rear
Type: VGA, USB 2.0, USB 3.0, LAN (10 Gigabit Ethernet) (SFP+), LAN (Gigabit Ethernet), Management, Serial
Mainboard
Chipset Type: Intel C612
Processor Socket: LGA2011-v3 Socket
Miscellaneous
Color Category: Gray
Height (Rack Units): 2
Networking
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol: 10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE), Ethernet, Fast Ethernet, Gigabit Ethernet
Optical Storage
Drive Type: No optical drive
Power Device
Installed Qty: 0
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Type: No power supply
Processor
Clock Speed: 2.3 GHz
Installed Qty: 2
Manufacturer: Intel
Max Supported Qty: 2
Max Turbo Speed: 3.1 GHz
Number of Cores: 12-core
Processor Number: E5-2670V3
RAM
Configuration Features: 8 x 16 GB
Installed Size: 128 GB
Max Supported Size: 384 GB
Memory Speed: 2133 MHz
Slots Qty: 24 DDR4 Slots
Technology: DDR4 SDRAM
