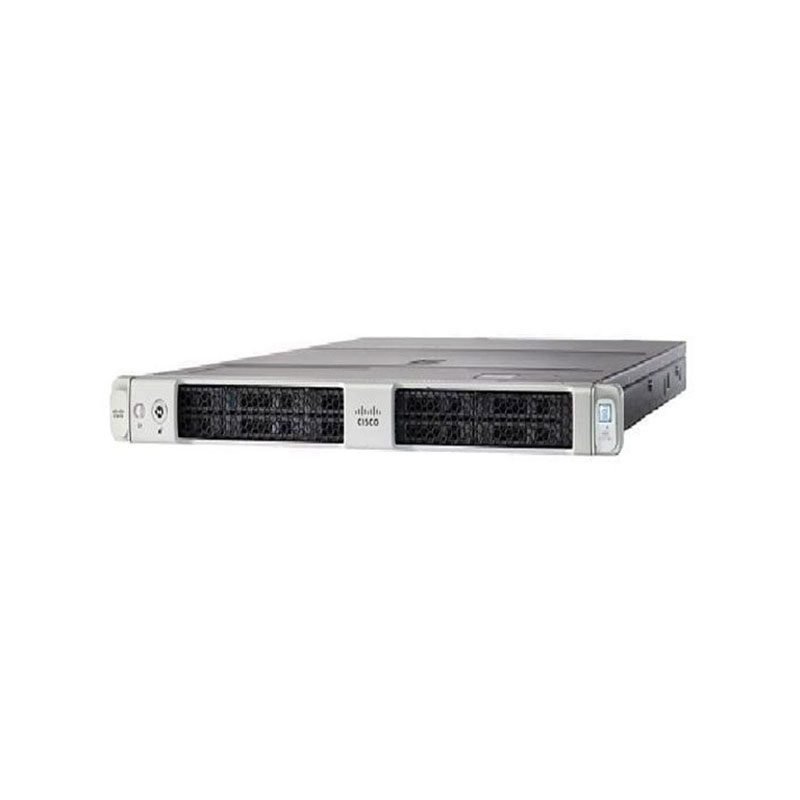

UCS-SPR-C220M5-A3 Cisco Systems SP C220 M5SX Server with Dual 5120 Processors
UCS-SPR-C220M5-A3 Overview
The UCS C220 M5 SFF server enhances Cisco’s Unified Computing System with its compact 1U design, featuring the Intel® Xeon® Processor Scalable Family. It supports 24 DIMM slots for 2666MHz DIMMs, accommodating up to 128GB, and offers two PCI Express (PCIe) 3.0 slots along with space for up to 10 SAS/SATA HDDs or SSDs.
25,686.33 AED
Description
UCS-SPR-C220M5-A3 Technical Specifications
Cisco Systems SP C220 M5SX 2X5120
General Information
- Product Name: SP C220 M5SX 2X5120 with 2X16GB Memory and 12G Mraid
- Manufacturer Part Number: UCS-SPR-C220M5-A3
- Product Series: C220 M5
- Product Type: Server
- Brand: Cisco UCS
Controllers
Controller Type: 12Gb/s SAS, with RAID support.
Display & Graphics
Graphics Controller: ASPEED Pilot 4 with a memory capacity of up to 16 MB.
I/O Expansions
Expansion Bays: Total of 10 bays, including 10 internal 2.5″ hot-swap bays.
Memory
- Standard Memory: 32 GB
- Maximum Memory: 3 TB
- Memory Technology: DDR4 SDRAM
- Total Memory Slots: 24 DDR4 slots (2 currently occupied)
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet.
Power Description
Supports 2 power supplies.
Processor & Chipset
- Supported Processors: 2
- Installed Processors: 2
- Processor Manufacturer: Intel
- Processor Type: Xeon Gold
- Processor Model: 5120
- Processor Cores: Tetradeca-core (14 Core)
- Processor Speed: 2.20 GHz
Physical Characteristics
Form Factor: Rack, with a height of 1U, dimensions of 1.7″ in height, 19″ in width, and 31″ in depth.
