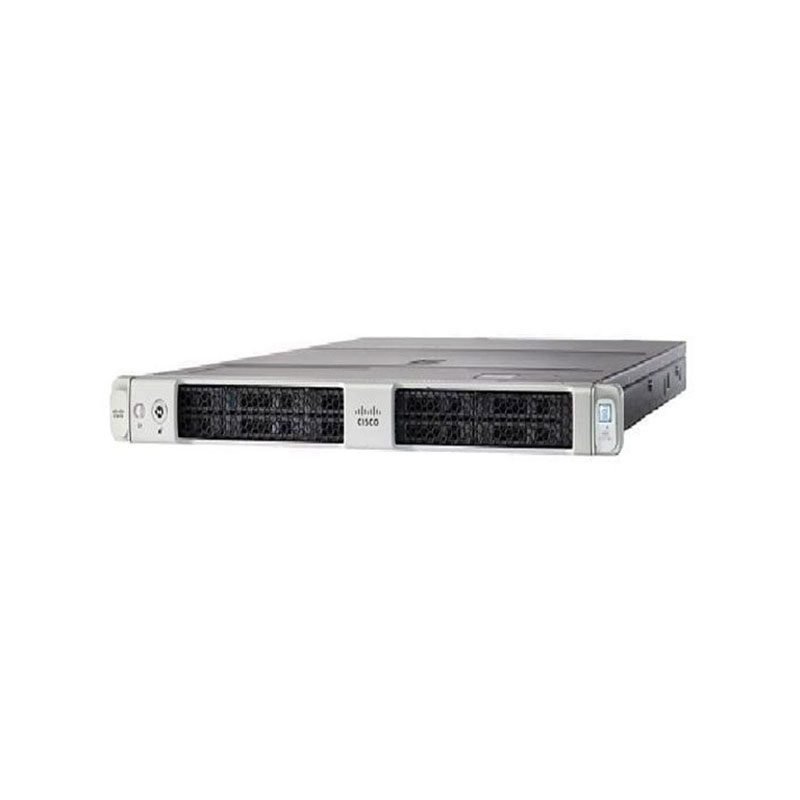

UCS-SPR-C220M5-C1 Cisco Systems C220 M5SX Server
UCS-SPR-C220M5-C1 Overview
The UCS C220 M5 SFF server enhances Cisco’s Unified Computing System portfolio, featuring Intel® Xeon® Processor Scalable Family support, 24 DIMM slots for 2666MHz DIMMs with capacities up to 128GB, two PCI Express (PCIe) 3.0 slots, and the ability to house up to 10 SAS/SATA HDDs or SSDs. It also includes a dedicated internal slot for a 12G SAS storage controller card.
27,323.15 AED
Description
UCS-SPR-C220M5-C1 Technical Specifications
Cisco Systems SP C220 M5SX with 2X5120
General Information
Product Name: SP C220 M5SX with 2X5120 and 2X32GB Memory 12G
Manufacturer Part Number: UCS-SPR-C220M5-C1
Product Series: C220 M5
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Support: Yes
Display & Graphics
Graphics Controller: ASPEED Pilot 4
Graphics Memory: Up to 16 MB
I/O Expansions
Total Expansion Bays: 10
Internal 2.5″ Bays: 10
Hot Swap Bays: Yes
Memory
Standard Memory: 64 GB
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 2
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Power Supplies Supported: 2
Processor & Chipset
Supported Processors: 2
Installed Processors: 2
Processor Manufacturer: Intel
Processor Type: Xeon Gold
Processor Model: 5120
Processor Cores: Tetradeca-core (14 Cores)
Processor Speed: 2.20 GHz
Physical Characteristics
Form Factor: Rack
Rack Height: 1U Rack Mount
Height: 1.7″
Width: 19″
Depth: 31″
