UCSB-B200-PKG Technical Specifications

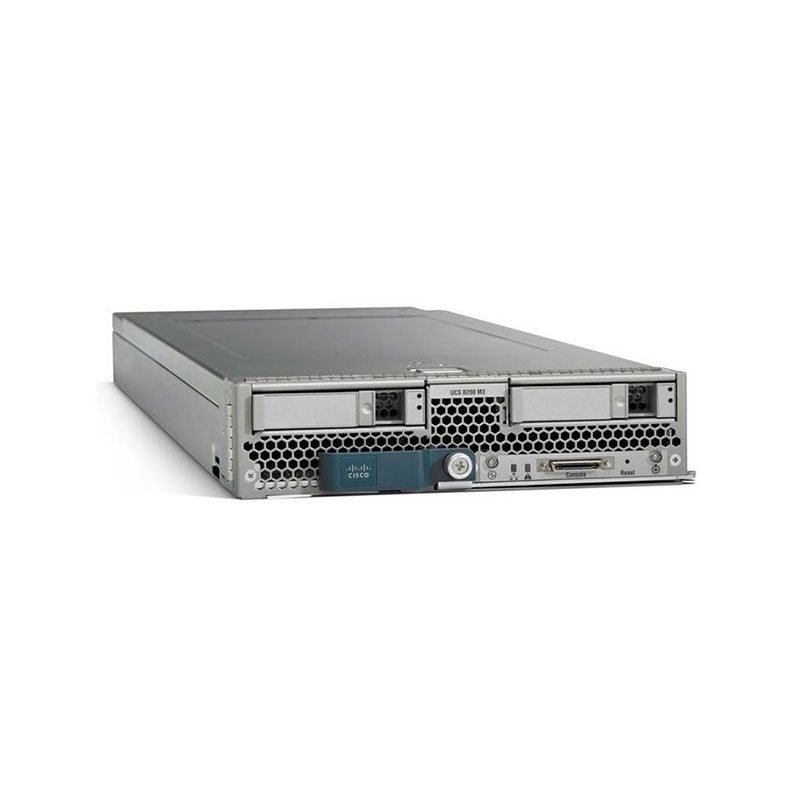

Cisco UCS B200 M3 Blade Server SmartPlay
Bay Provided
Form Factor: 2.5″
Free Qty: 2
Total Qty: 2
Cache Memory
Installed Size: 50 MB
Per Processor Size: 25 MB
Type: L3 cache
Chassis
Form Factor: Blade
Hot-Swap Bays Qty: 2
Manufacturer Form Factor: Blade Server
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 24.4 in
Height: 2 in
Width: 8 in
Environmental Parameters
Humidity Range Operating: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Bays
Type: Hot-swap
Hard Drive
Installed Qty: 1
Interface Class: PCIe Express
Type: SSD
Header
Brand: Cisco
Model: B200 M3 Blade Server SmartPlay Expansion Pack
Networking
Ethernet Controller(s): Cisco UCS Virtual Interface Card 1240
Ethernet Ports: 4 x 10 Gigabit Ethernet
Processor
Installed Qty: 2
Clock Speed: 2.8 GHz
Number of Cores: 10-core
RAM
Installed Size: 256 GB
Max Supported Size: 384 GB
Technology: DDR3 SDRAM
