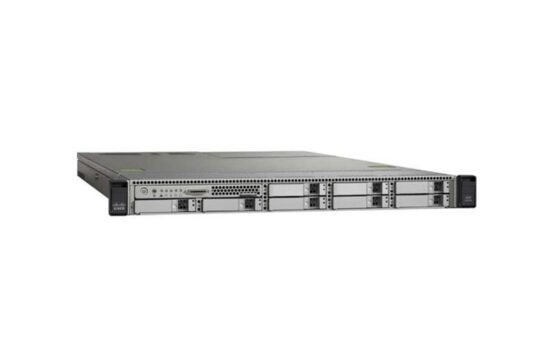

“Image for reference only. Specs are accurate.”
UCSC-C22-M3L Cisco UCS C22 M3 Rack-Mount Server
UCSC-C22-M3L Overview
The Cisco UCS C22 M3 is a high-density rack server designed for cost-effective performance. Ideal for small to medium businesses, it excels in applications like virtualization, scale-out computing, VPN, and file/print services, all while maintaining a compact form factor.
2,334.12 AED
Description
UCSC-C22-M3L Technical Specifications
Cisco UCS C22 M3 High-Density Rack-Mount Server
Drive Bays
Form Factor: 3.5″
Available Quantity: 4
Total Bays: 4
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays: 4
Manufacturer Form Factor: Rack-mountable
Storage Bays: Hot swap
Drive Interface: SATA
Dimensions & Weight
Depth: 26 in
Height: 1.7 in
Weight: 23.48 lbs
Width: 16.9 in
Environmental Parameters
Operating Humidity: 10 – 90% (non-condensing)
Max Operating Temp: 104 °F
Min Operating Temp: 41 °F
Expansion Bays
Type: Hot-swap
Expansion Slots
Size: Half-length, PCIe 3.0 x8
Size: Half-length, full-height, PCIe 3.0 x16
Header
Brand: Cisco
Compatibility: PC
Manufacturer: Cisco Unified Computing
Model: C22 M3 High-Density Rack-Mount Server Large Form Factor
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Location: 2 front, 4 rear
Type: USB 2.0, Serial, LAN (Gigabit Ethernet), Management (NIC), VGA
Mainboard
Chipset: Intel C600
Processor Socket: LGA1356 Socket
Miscellaneous
Color: Gray
Included Accessories: Rack rail kit
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller: Intel I350
Ports: 2 x Gigabit Ethernet
Power Device
Installed Qty: 0
Max Supported Qty: 2
Power Redundancy: Optional
Type: Power supply
