UCSC-C420-M3 Technical Specifications

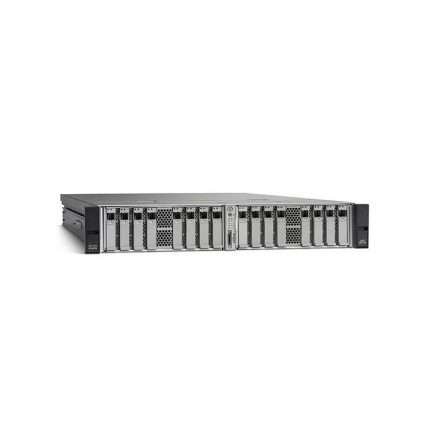

Cisco UCS C420 M3 High-Performance Rack Server
Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 16
Total Qty: 16 Bays
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 16
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 31.5 in
Height: 3.5 in
Width: 18.9 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 32 °F
Expansion Bays
Type: Hot-swap
Expansion Slots
Size: Half-length, Full-height
Type: PCIe 3.0 x16, PCIe 3.0 x8
Header
Brand: Cisco
Model: C420 M3 High-Performance Rack Server
Interface Provided
Qty: 4 x Gigabit Ethernet, 3 x USB 2.0, 1 x Serial
Power Device
Type: Hot-plug power supply
RAM
Max Supported Size: 1.5 TB
Slots Qty: 48 DDR3 Slots
Technology: DDR3 SDRAM.
