“Image for reference only. Specs are accurate.”

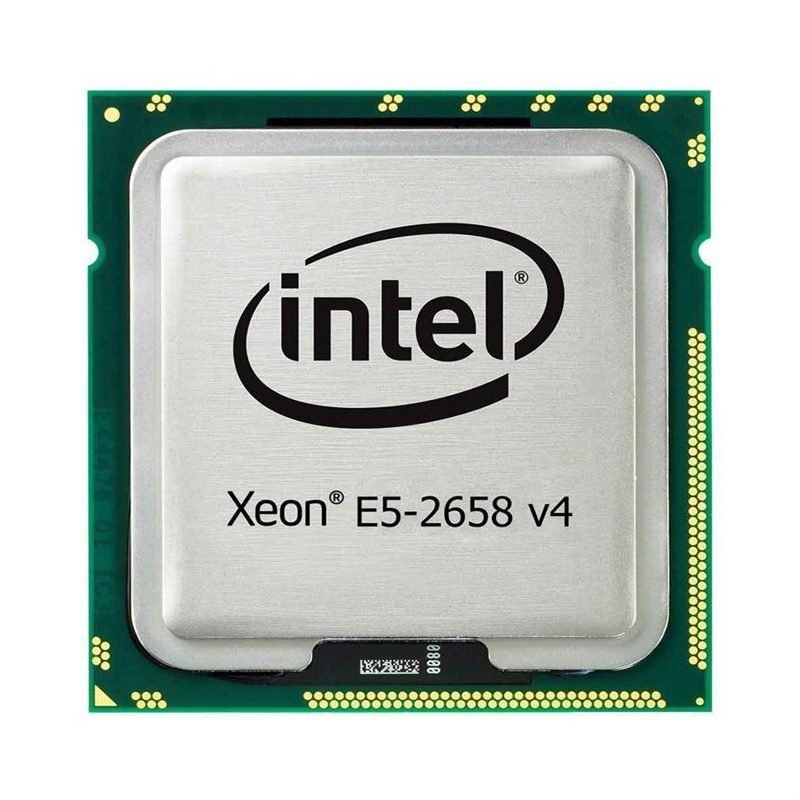

Lenovo Xeon E5-2658 V4 14-Core Processor 2.30 GHz – 00YE945
Lenovo Xeon E5-2658 V4 14-Core Processor 2.30 GHz. SKU: 00YE945. Match the full model suffix and system support list.
- 14 cores
- 2.3 GHz base frequency
- LGA2011-v3 socket
- 35 MB cache
- 105 W TDP
Description
Xeon E5-2658 v4 overview
00YE945 identifies the Lenovo Xeon E5-2658 V4 14-Core Processor 2.30 GHz. Its specification includes 14 cores, a 2.3 GHz base frequency and 35 MB cache.
Processor specifications
| Specification | Details |
|---|---|
| Part Number | 00YE945 |
| Brand | Lenovo |
| Model | E5-2658 v4 |
| Product Type | Processor Upgrade |
| Cores | 14 |
| Base Clock | 2.30 GHz |
| Maximum Turbo Frequency | 2.80 GHz |
| Socket | LGA2011-v3 |
| L2 Cache | 3.50 MB |
| L3 Cache | 35 MB |
| Thermal Design Power | 105 W |
| Manufacturing Process | 14 nm |
| Product Line | Xeon |
| Series | E5-2600 v4 |
| Product Name | Xeon Tetradeca-core E5-2658 v4 2.3 GHz Server Processor Upgrade |
| Processor Manufacturer | Intel |
| QuickPath Interconnect | 9.60 GT/s |
| 64-bit Support | Yes |
Compatibility and installation
- Socket and firmware: Check support for Xeon E5-2658 v4 on the target LGA2011-v3 platform. Socket fit alone does not confirm chipset or BIOS support.
- Generation: Keep the v4 suffix in the part request; a similarly numbered processor from another generation should not be treated as an automatic replacement.
- Configuration planning: Check software licensing and the server vendor’s processor-pairing rules before increasing core count or adding a second CPU.
- Cooling: Confirm that the platform and cooling assembly are qualified for the listed 105 W processor TDP.
Ask whether a heatsink or other kit parts are included, and confirm the item’s condition and warranty coverage.
Request this part
Reach out with 00YE945, quantity and system model using our quotation request; availability and delivery time will be confirmed prior to order placement.
