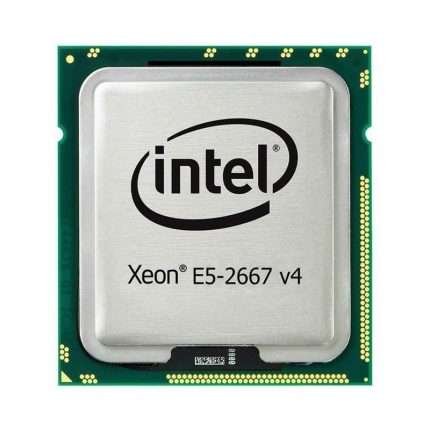

“Image for reference only. Specs are accurate.”
Lenovo Intel Xeon E5-2667 V4 8-Core Processor 3.20 GHz – 00YJ102
Lenovo Intel Xeon E5-2667 V4 8-Core Processor 3.20 GHz. SKU: 00YJ102. Use the part reference and platform specifications for replacement matching.
- 8 cores / 16 threads
- 3.2 GHz base frequency
- LGA2011 socket
- 25 MB cache
- 135 W TDP
Description
Xeon E5-2667 v4 overview
00YJ102 identifies the Lenovo Intel Xeon E5-2667 V4 8-Core Processor 3.20 GHz. Its specification includes 8 cores and 16 threads, a 3.2 GHz base frequency and 25 MB cache.
Processor specifications
| Specification | Details |
|---|---|
| Part Number | 00YJ102 |
| Brand | Lenovo |
| Product Type | Server Processor |
| Cores | 8 |
| Threads | 16 |
| Base Clock | 3.20 GHz |
| Socket | LGA2011 |
| L3 Cache | 25 MB |
| Thermal Design Power | 135 W |
| Code Name | Broadwell |
| Manufacturing Process | 14 nm |
| 64-bit Support | Yes |
| Core Model Type | E5-2667 v4 |
| Core Stepping | R0 |
| Front Side Bus / Quick Path Interconnect | 9.60 GT/s |
| Processor Type | Server |
| Series | Xeon Processor |
| Virtualization Technology Support | Yes |
Compatibility and installation
- Socket and firmware: Check support for Xeon E5-2667 v4 on the target LGA2011 platform. Socket fit alone does not confirm chipset or BIOS support.
- Generation: Keep the v4 suffix in the part request; a similarly numbered processor from another generation should not be treated as an automatic replacement.
- Configuration planning: Check software licensing and the server vendor’s processor-pairing rules before increasing core count or adding a second CPU.
- Cooling: Confirm that the platform and cooling assembly are qualified for the listed 135 W processor TDP.
Package and supply details
| Specification | Details |
|---|---|
| Cooler Included | No |
A cooler is not included in the listed configuration. Confirm the correct cooling assembly for the target system.
Request this part
When you submit your quote request, reference 00YJ102 along with the quantity needed and your system model. Availability and lead time are confirmed at that stage.
