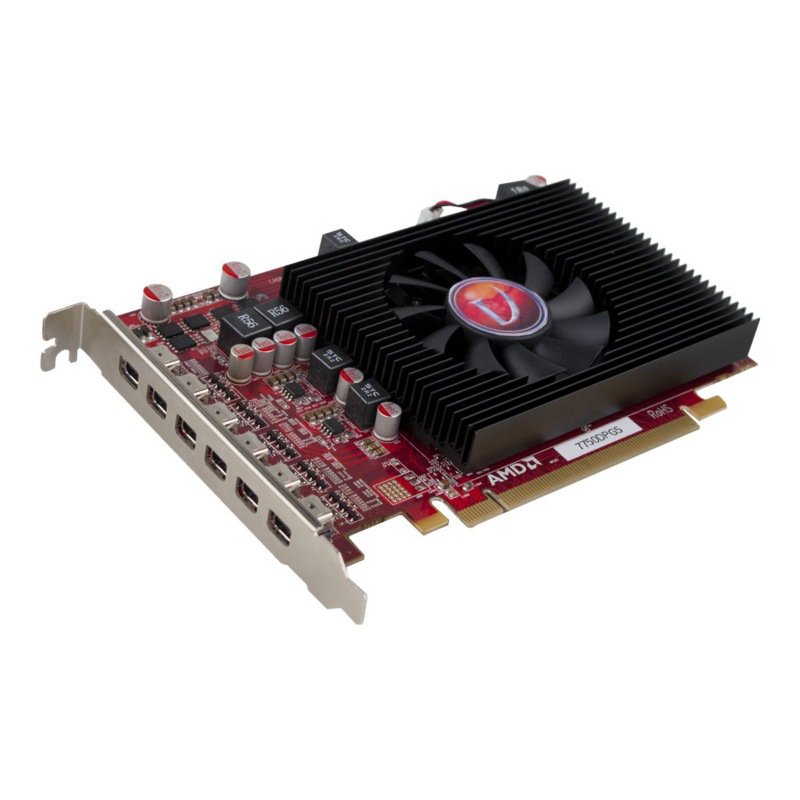

900614 VisionTek Radeon 7750 2GB GDDR5 Graphics Card (6x MiniDP)
900614 Overview
The VisionTek Radeon 7750 2GB GDDR5 Graphics Card (900614) is a specialized multi-display graphics solution designed for digital signage, trading workstations, control rooms, business environments, and professional users requiring extensive monitor support. Powered by the AMD Radeon HD 7750 GPU based on the Graphics Core Next (GCN) architecture, it features 2GB of GDDR5 memory and six Mini DisplayPort outputs, enabling support for up to six independent displays from a single PCIe slot.
693.63 AED
Description
| Feature | Specification |
|---|---|
| Model | VisionTek Radeon 7750 6M |
| Part Number | 900614 |
| GPU | AMD Radeon HD 7750 |
| GPU Architecture | Graphics Core Next (GCN) |
| Compute Units | 8 |
| Memory | 2GB GDDR5 |
| Memory Interface | 128-bit |
| Memory Speed | 4.5 Gbps |
| Memory Bandwidth | 72 GB/s |
| Core Clock | Up to 800 MHz |
| Bus Interface | PCI Express 3.0 x16 |
| Display Outputs | 6 × Mini DisplayPort |
| Maximum Displays | Up to 6 |
| Maximum Resolution | 3840 × 2160 @ 60Hz per display |
| Multi-Display Technology | AMD Eyefinity |
| API Support | DirectX 11, OpenGL 4.6, OpenCL 1.2 |
| Power Consumption | Up to 70W |
| Recommended PSU | 300W |
| External Power Connector | None Required |
| Form Factor | Full Height, Single Slot |
| Cooling | Active Fan Cooling |
Frequently Asked Questions
1. What is the VisionTek 900614 graphics card designed for?
The VisionTek Radeon 7750 6M is designed for multi-monitor environments such as digital signage, financial trading, control rooms, business applications, and productivity workstations.
2. How many displays can the 900614 support?
The card supports up to six independent displays through its six Mini DisplayPort outputs using AMD Eyefinity technology.
3. Does the VisionTek Radeon 7750 6M support 4K displays?
Yes. Each Mini DisplayPort output supports resolutions up to 3840 × 2160 at 60Hz when connected with compatible displays and adapters.
4. Does this graphics card require external PCIe power?
No. The card has a maximum power consumption of approximately 70W and receives power directly from the PCIe slot.
5. Is the VisionTek 900614 suitable for gaming?
The card is optimized primarily for multi-display productivity and professional applications. It can handle light gaming and multimedia tasks but is not intended for modern AAA gaming.
6. What adapters are included with the graphics card?
The package typically includes Mini DisplayPort to DisplayPort adapters and Mini DisplayPort to DVI adapters, depending on the retail package version.
