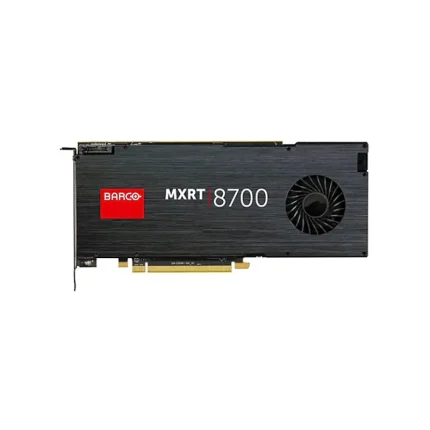

T9706048-TAA Barco MXRT-8700 Display Controller Unit
T9706048-TAA Overview
The Barco MXRT-8700 Display Controller Unit (T9706048-TAA) is a high-end medical display controller engineered for advanced diagnostic imaging, PACS workstations, and multi-monitor radiology environments. Powered by an AMD Radeon Pro–based GPU, it features 16GB of GDDR5 display memory, 2,304 stream processors, and 224 GB/s memory bandwidth to ensure smooth handling of large medical image datasets.
8,789.65 AED
Description
| Feature | Specification |
|---|---|
| Model | Barco MXRT-8700 Display Controller |
| Part Number | T9706048-TAA |
| Graphics Processor | AMD Radeon Pro™ |
| Stream Processors | 2,304 |
| Display Memory | 16GB GDDR5 |
| Memory Interface | 256-bit |
| Memory Bandwidth | 224 GB/s |
| Bus Interface | PCI Express Gen3 x16 |
| Display Outputs | 6 × Mini DisplayPort 1.4 |
| Maximum Displays | Up to 6 |
| Color Support | 30-bit Color, 10-bit Grayscale |
| API Support | DirectX 12, Vulkan 1.1, OpenGL 4.5 |
| Power Consumption | 130W |
| Power Connector | 1 × 6-pin (2×3) |
| Form Factor | Full Height, Single Width |
| Operating Systems | Windows 10 (64-bit), Windows 11 (64-bit) |
| Included Accessories | 4 × Mini DisplayPort-to-DisplayPort Locking Adapters |
| Primary Applications | PACS, Diagnostic Imaging, Radiology, Medical Visualization |
Frequently Asked Questions
1. What is the Barco MXRT-8700 Display Controller used for?
The Barco MXRT-8700 is designed for diagnostic imaging workstations, PACS systems, radiology reading stations, and other medical visualization applications requiring certified graphics performance.
2. How many displays does the T9706048-TAA support?
The display controller can drive up to six monitors simultaneously through its six Mini DisplayPort 1.4 outputs.
3. How much memory does the Barco MXRT-8700 include?
The card features 16GB of GDDR5 display memory with a 256-bit memory interface and 224 GB/s memory bandwidth for handling large medical image datasets efficiently.
4. Does the MXRT-8700 support high-color precision?
Yes. It supports 30-bit color depth and 10-bit grayscale, making it suitable for diagnostic imaging where accurate image reproduction is critical.
5. Which operating systems are supported?
The Barco MXRT-8700 supports Microsoft Windows 10 (64-bit) and Windows 11 (64-bit) with Barco-certified display drivers.
6. Is the T9706048-TAA suitable for gaming or general consumer use?
No. The MXRT-8700 is purpose-built for professional medical imaging and diagnostic workflows. Its certified drivers and display features are optimized for healthcare applications rather than gaming.
