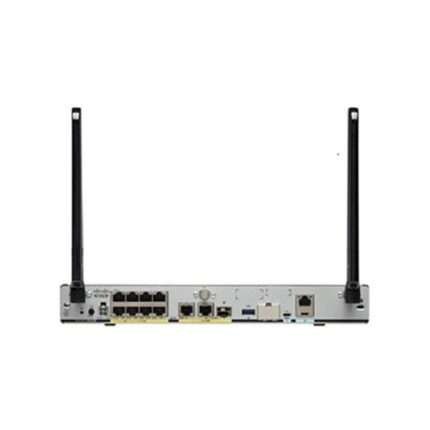

C1112-8PWE Cisco 1100 Series ISR Router with WiFi

C1112-8PWE Technical Specifications

Cisco 1100 Series Integrated Services Router

GE: N/A
GE/SFP combo: 1
ADSL2/VDSL2+: 1 G.FAST (Annex B)
LTE Advanced (CAT6): N/A
802.11ac: 2X2 MIMO
GE: 8
PoE: 4
PoE+: 2
Integrated USB 3.0 AUX/console: Yes
Memory (default and maximum)
DRAM: 4 GB
Flash: 4 GB
Console
· Micro USB console (USB 3.0).
Mini-USB port (reserved)
· Micro-USB port for remote LTE diagnostics and monitoring (Qualcomm CAIT and Spirent UDM) (USB 3.0).
802.11ac
· 2×2 SU-MIMO/MU-MIMO with dual spatial streams.
· Maximal Ratio Combining (MRC).
· Supports 20-, 40-, and 80-MHz channels.
· PHY data rates reach up to 866.7 Mbps (80 MHz on 5 GHz).
· Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).
· 802.11 Dynamic Frequency Selection (DFS) and Cyclic Shift Diversity (CSD) support.
Software
· Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (8.7 for 1101 series) MR1 or later.
DSL interfaces
· G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M compatible with ADSL2/2+ and VDSL2.
· ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b.
· ITU G.9700/9701/997.2 G.FAST and supported profiles: 106a, 106b.
External power supply
· AC input voltage: Universal 100 to 240 VAC.
· Frequency: 50 to 60 Hz.
· Max output power: 66W (default).
· Output voltage: 12 VDC.
· Optional PoE and PoE+:
◦ Single 150W power supply for Cisco 1100-8P series router
◦ Single 115W power supply for Cisco 1100-4P series router
· External output voltage: 48 VDC.
USB 3.0
· Supported USB devices:
◦ USB eTokens and USB flash drives
· Note: USB 3.0 devices can be connected externally.
LEDs
· WWAN (green/amber), SIM status (green/amber), RSSI bar (green), 3G/LTE service (green/amber), GPS (green/amber), Gigabit Ethernet WAN port (green), Fast Ethernet LAN ports (green).
Physical dimensions
(H x W x D)
C111X Models: 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) with rubber feet on LTE models; 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) for non-LTE models.
C1101-4PLTEP and C1101-4PLTEPWX Models: 1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) with rubber feet.
Weight
C111X Models: 1.94 lb to 4.59 lb (1.94kg to 2.08 kg), 4.50 lb (2.04 kg) with LTE Advanced, 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio, and 4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio.
Environmental operating range
· Nonoperating temperature: -4° to 149°F (-0° to 65°C).
· Nonoperating humidity: 5% to 95% relative humidity (noncondensing).
· Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).
· Operating temperature: 32° to 104°F (0° to 40°C); C1101 supports 32° to 113°F (0° to 45°C).
· Operating humidity: 10% to 85% relative humidity (noncondensing).
· Operating altitude: 0 to 10,000 ft (0 to 3000 m).
