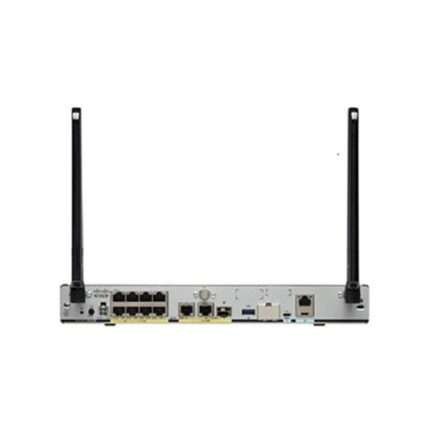

C1111-8PLTEEAWE Cisco 1100 Series ISR with LTE and WiFi

C1111-8PLTEEAWE Technical Specifications

Cisco 1100 Series Integrated Services Router

Description
This model is the ISR 1100 8P, featuring Dual GE WAN with LTE Advanced, SMS/GPS, and 802.11ac -E WiFi capabilities.
Physical Properties
Dimensions (H x W x D):
LTE models:
H x W x D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) including rubber feet.
Weight with AC Power Supply (without modules):
5.5 lbs. (2.5 kg) maximum.
AC Input Power
Input voltage:
Universal 100 to 240 VAC.
Frequency:
50-60 Hz.
Input current:
PoE disabled: 0.82A maximum; PoE enabled: 1.55A maximum.
Surge current:
90 A peak, less than 8 Arms per half cycle.
Ports
Micro USB Port:
One RJ-45 for separate console management.
USB port
USB 3.0 Type A host port supporting USB flash memory.
Console port
One USB 5-pin micro Type B for console management connectivity.
10/100/1000 Gigabit Ethernet:
Two GE ports available via RJ45 and SFP, including one combo port and one dedicated port.
Wireless VLANs
Supports 32 VLANs (both encrypted and non-encrypted).
Wireless specifications:
2×2 .11ac Wave 2.
Default and maximum DRAM: 4GB; Flash: 4GB maximum.
Inline PoE
4 ports for -8P PIDs, 2 ports for -4P PIDs, compliant with 802.3af or 802.3at PoE+.
Acoustic performance:
Fanless design, thus not applicable.
