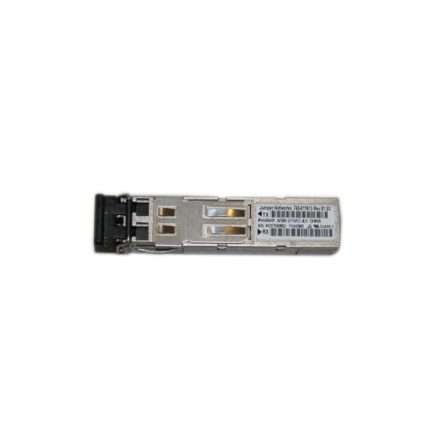

EX-SFP-1GE-LX – Juniper Gigabit LX SFP Transceiver Module

EX-SFP-1GE-LX Technical Specifications

Juniper SFP Mini-GBIC Transceiver Module

Device Type: SFP (Mini-GBIC) Transceiver Module
Enclosure Type: Plug-In Module
Networking:
Connectivity Technology: Wired
Cabling Type: 1000Base-LX
Data Link Protocol: Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wavelength: 1310 nm
Maximum Transfer Distance: 10 km (6.2 miles)
Expansion / Connectivity:
Interfaces: Network – Ethernet 1000Base-LX
Compatible Slots: SFP (Mini-GBIC) compatible with Juniper Networks
Vendor Name: FS
Form Factor: SFP
Max Data Rate: 1.25 Gbps
Wavelength: 1310 nm
Maximum Cable Distance: 10 km over SMF
Connector: Duplex LC
Media: SMF
Transmitter Type: FP
Receiver Type: PIN
DDM/DOM: Supported
Operating Temperature: 0 to 70°C (32 to 158°F)
TX Power: -9.5 to -3 dBm
Receiver Sensitivity: < -20 dBm
Power Consumption: ≤ 1W
Receiver Overload: -3 dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: > 9 dB
EMC (Electromagnetic Compatibility): Supported
MTBF (LX): 4,761,904 Hours.
